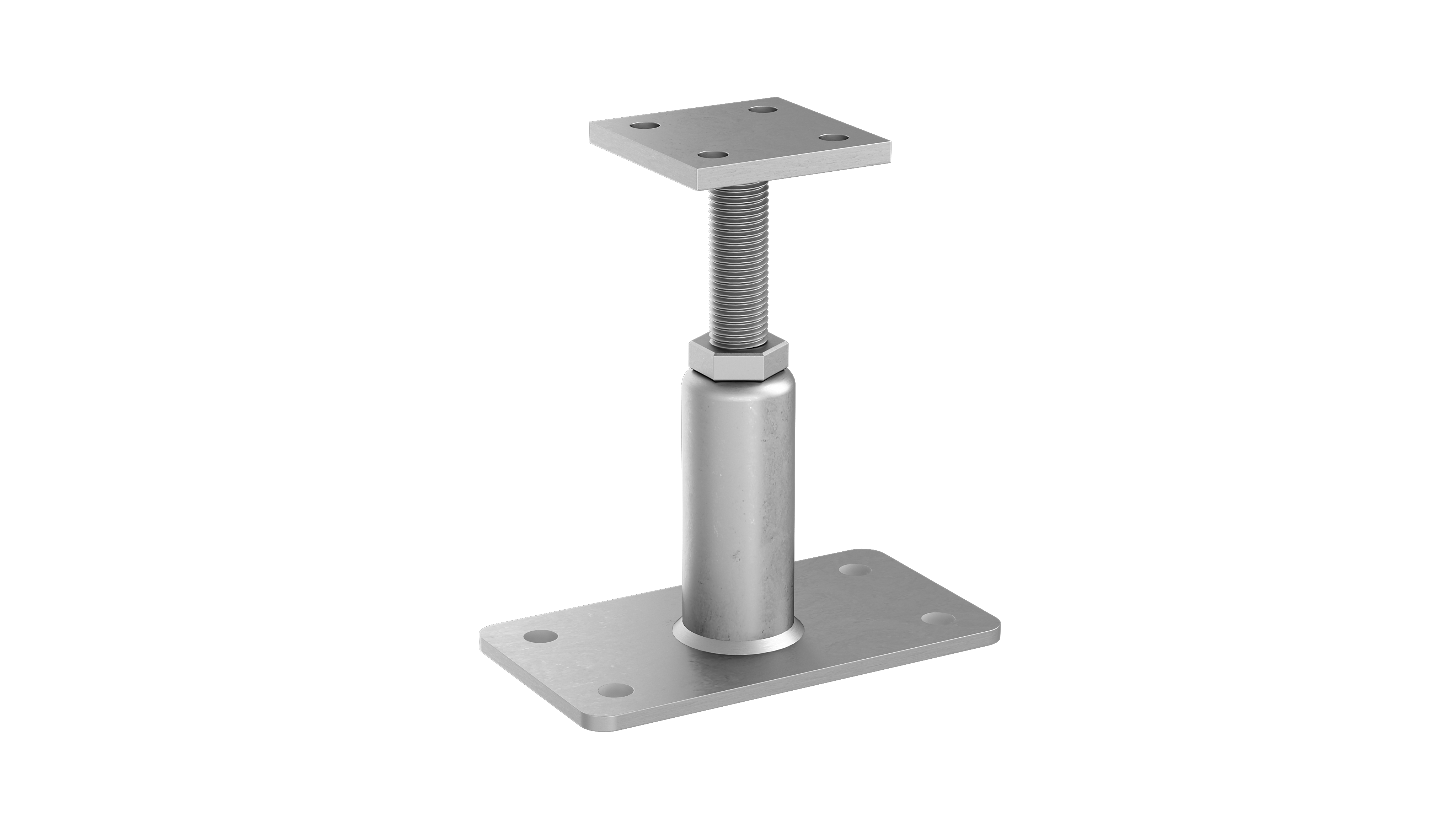

Post Support Typ PR on concrete height adjustable










Order no.: 19534100
EAN: 4019346011256
Anwendungen
Variant selection(All Orange marked in combination possible):
Are you a customer or a new customer? (Specialist trade) | ||
For more information about our products, orders, invoices and promotions, log in to our new shop system (account above). |
DC Statik: | JA |
Gruppe: | Pfostentraeger |
Made in Germany: | JA |
Statikdiagramm: | Pfostentraeger |
ETA: | ETA-16/0550 |
Höhe mm: | 135-215 |
Gewinde Ø: | 22 |
Bodenplatte Breite: | 100 |
Bodenplatte Länge: | 180 |
Bodenplatte Stärke: | 6 |
Ø 11 mm: | 4 |
Ø 13 mm: | 4 |
Trägerplatte Breite: | 80 |
Trägerplatte Stärke: | 8 |
Material: | S 235 JR |
Nutzungsklasse: | NKL 2 |
Pfostenträger Typ PR auf Beton höhenverstellbar
CAD Post Support ZinTOP type PR oc ha
ETA_16_0550_column base type T01 in concrete
DoP column base
Design example column base
Statics column base type PR on concrete - height-adjustable
Catalog column base type U-70 on concrete height-/laterally adjustable
1 -
3
from
3
Variants
product.variant.list.sku | Quantity | Höhe mm | Gewinde Ø | Bodenplatte Breite | Bodenplatte Länge | Bodenplatte Stärke | Ø 11 mm | Ø 13 mm | Trägerplatte Breite | Trägerplatte Stärke | Material | Nutzungsklasse | |||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19534100 |
|
135-215 | 22 | 100 | 180 | 6 | 4 | 4 | 80 | 8 | S 235 JR | NKL 2 | ||
|
19534110 |
|
185-265 | 22 | 100 | 180 | 6 | 4 | 4 | 80 | 8 | S 235 JR | NKL 2 | ||
|
19534120 |
|
235-315 | 22 | 100 | 180 | 6 | 4 | 4 | 80 | 8 | S 235 JR | NKL 2 |
![]() |
![]() |
![]() |
COLUMN BASE TYPE PR ON CONCRETE, HEIGHT-ADJUSTABLE
*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)
Art. No. | Post [mm] | Pressure F1,Rk | Tension F1,Rk | F2/3,Rk | F3/4,Rk | |
---|---|---|---|---|---|---|
min w | min h | Steel [kN] | ||||
19534100 | 100 | 100 | 54,1 | 6,66 | 1,99 | 1,53 |
19534110 | 100 | 100 | 54,1 | 6,66 | 1,61 | 1,24 |
19534120 | 100 | 100 | 54,1 | 6,66 | 1,35 | 1,04 |
4 screws Ø 10x120 mm
![]() |
![]() |
![]() |
COLUMN BASE TYPE PR ON CONCRETE, HEIGHT-ADJUSTABLE
*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)
Art. No. | Post [mm] | Pressure F1,Rk | Tension F1,Rk | F2/3,Rk | F3/4,Rk | |
---|---|---|---|---|---|---|
min w | min h | Steel [kN] | ||||
19534100 | 100 | 100 | 54,1 | 6,66 | 1,99 | 1,53 |
19534110 | 100 | 100 | 54,1 | 6,66 | 1,61 | 1,24 |
19534120 | 100 | 100 | 54,1 | 6,66 | 1,35 | 1,04 |
4 screws Ø 10x120 mm
