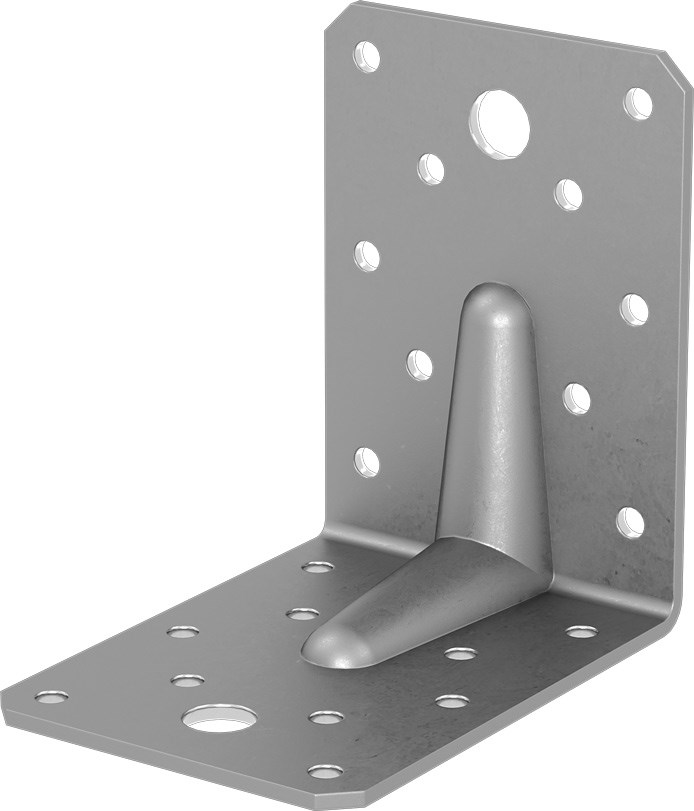

Angle Connector 90x90
Order no.: 6503S13
EAN: 4019346110614
Anwendungen
| Are you a customer or a new customer? (Specialist trade) | ||
| For more information about our products, orders, invoices and promotions, log in to our new shop system (account above). |
| Wide mm: | 65 |
| Height mm: | 90 |
| Length mm: | 90 |
| Thickness mm: | 2,5 |
| Secondary beam Ø 5: | 20 |
| Secondary beam2 Ø 13: | 2,0 |
| Secondary beam2 Ø 11: | - |
| Bar: | mit |
| Material: | S 250 GD +Z 275 |
| Use class: | NKL 2 |
| Application: | Holz/Holz+Holz/Beton |
| Netto Gewicht Kg: | 19,4 |
| Made in Germany: | JA |
| Statics diagram: | Winkelverbinder |
| Gruppe: | Winkelverbinder |
| ETA: | ETA-09 0323 |
Winkelverbinder Typ 65/90 mit Steg 2,5mm
General basics angle bracket
DoP
CAD Angle Bracket 65/90 2,5mm
ETA-09/0323
Catalog pages
Drawing Angle Bracket TYPE 65/90 S 2.5 with rip #6503S
Statics Angle Bracket TYPE 65/90 S/S13 2.5 with rip #6503S(13)
Statics Angle Bracket TYPE 65/90 S/S13 2.5 w/o rip #6504S(13)
Winkelverbinder Typ 65/90 ohne Steg 2,5mm
Drawing Angle Bracket TYPE 65/90 S 2.5 w/o rip #6504S
Drawing Angle Bracket TYPE 65/90 S13 2.5 with rip #6503S13
Drawing Angle Bracket TYPE 65/90 S13 2.5 w/o rip #6504S13
