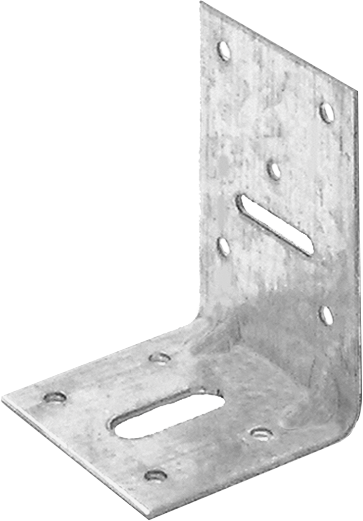

GH-Mounting Brackets 60x90x60x2,5 long hole 10mm
ETA 09 0322 Made in Germany


GH ANGLE BRACKET TYPE LL

These GH angle brackets are primarily suitable for securing the bearing of columns on concrete slabs, steel girders and timber sills. They can also be used for reliably securing rafter bearings on trusses. The advantage of the angle connector with elongated hole is that it allows greater variability of use in the area of the joint, as is often necessary, for example, if the dowel could not be attached in the element with precise fit.

The elongated hole nevertheless ensures optimum seating of the angle connector. The elongated hole is also advantageous when used in conjunction with Halfen cast-in channels.

These GH angle brackets are primarily suitable for... show more
Order no.: 26910 EAN: 4019346110386


Variant selection(All Orange marked in combination possible):
 Are you a customer or a new customer? (Specialist trade)
 For more information about our products, orders, invoices and promotions, log in to our new shop system (account above).



height: 90
length: 60
width: 60
thickness: 2,5
Langloch: 5x28
Nebenträger Langloch: 10x28
Nebenträger Ø 5: 9
ETA-09/0322: ETA-09/0322
Material: S 250 GD +Z 275

equipment

ETA 09 0322 Made in Germany


GH ANGLE BRACKET TYPE LL

These GH angle brackets are primarily suitable for securing the bearing of columns on concrete slabs, steel girders and timber sills. They can also be used for reliably securing rafter bearings on trusses. The advantage of the angle connector with elongated hole is that it allows greater variability of use in the area of the joint, as is often necessary, for example, if the dowel could not be attached in the element with precise fit.

The elongated hole nevertheless ensures optimum seating of the angle connector. The elongated hole is also advantageous when used in conjunction with Halfen cast-in channels.
