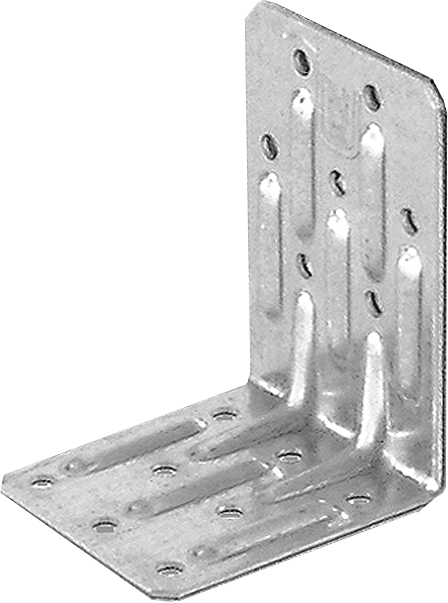

GH-Connector TOP 80 80x60x55x2,0
ETA 09 0322 Made in Germany

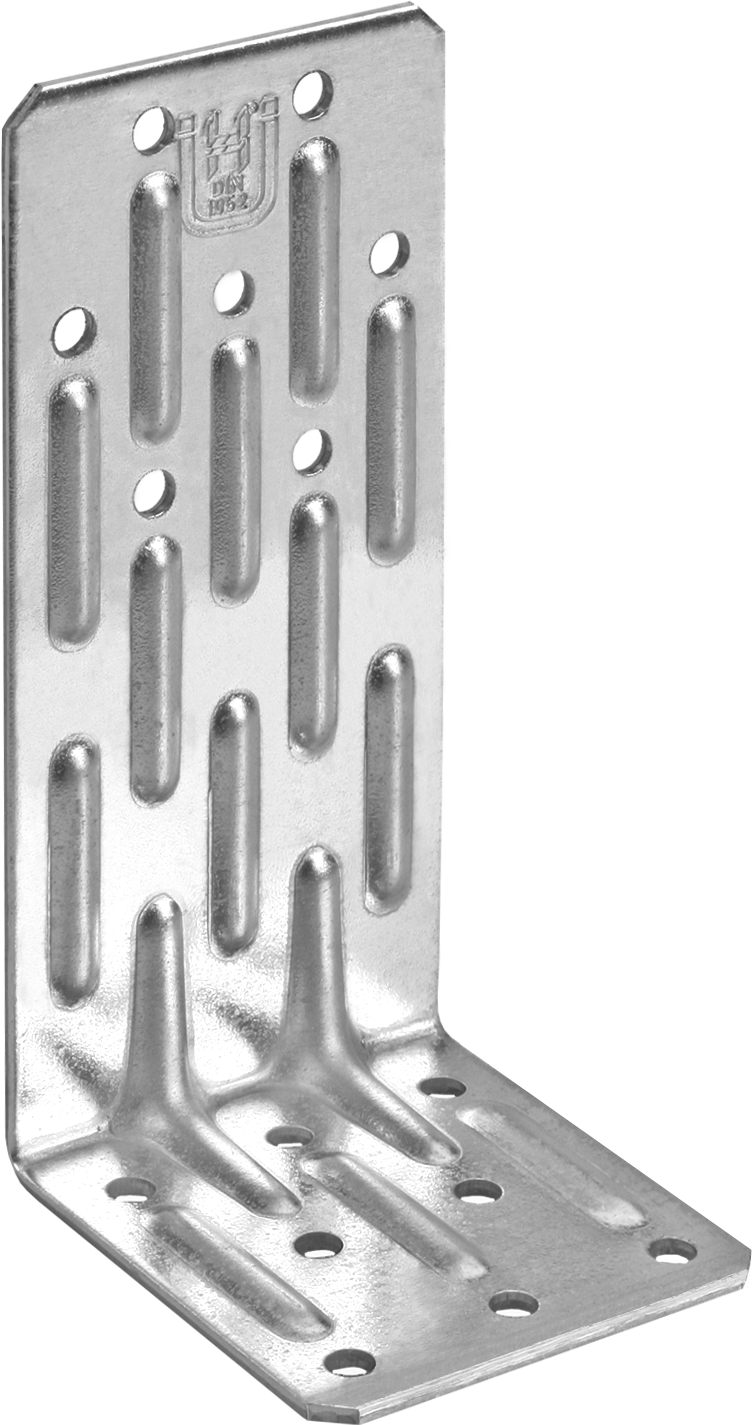

GH TOP 80 / TOP 120 Connectors



Advantages TOP 80:


• No disrupting middle gusset during installation.
• Full nailing is always possible.
• High degree of stability due to special beads, positioned so as not to get in the way.

TOP 80 can alternatively be used for the angles 65/90S (size 90 angles)!



 Installation:


• Short leg on the continuous timber passing through
• From timber width 80 mm
• On timber-timber; timber/panel materials



Advantages TOP 120:


• Reduced nailing pattern
• No fi xing in the edge zone
• For timber-to-concrete connections, see also Top 80 / Top 120 Vario



 Fastener: GH connector nails Ø 4.0 mm or GH screw Ø 5.0 mm.

GH TOP 80 / TOP 120 Connectors... show more
Order no.: 110805 EAN: 4019346110805
TopLine & GreenLine


Variant selection(All Orange marked in combination possible):
 Are you a customer or a new customer? (Specialist trade)
 For more information about our products, orders, invoices and promotions, log in to our new shop system (account above).



Material: S 250 GD +Z 275
height: 80
width: 55
length: 60
thickness: 2,0
ETA-09/0322: ETA-09/0322
Nebenträger Ø 5: 15
GreenLine: GreenLine
TopLine: TopLine

equipment

ETA 09 0322 Made in Germany

GH TOP 80 / TOP 120 Connectors



Advantages TOP 80:


• No disrupting middle gusset during installation.
• Full nailing is always possible.
• High degree of stability due to special beads, positioned so as not to get in the way.

TOP 80 can alternatively be used for the angles 65/90S (size 90 angles)!



 Installation:


• Short leg on the continuous timber passing through
• From timber width 80 mm
• On timber-timber; timber/panel materials



Advantages TOP 120:


• Reduced nailing pattern
• No fi xing in the edge zone
• For timber-to-concrete connections, see also Top 80 / Top 120 Vario



 Fastener: GH connector nails Ø 4.0 mm or GH screw Ø 5.0 mm.
