GH-Post Base Type T 01 on concrete, 80x130 mm bar 20x250 mm
ETA 16 0550 Made in Germany DC Statik

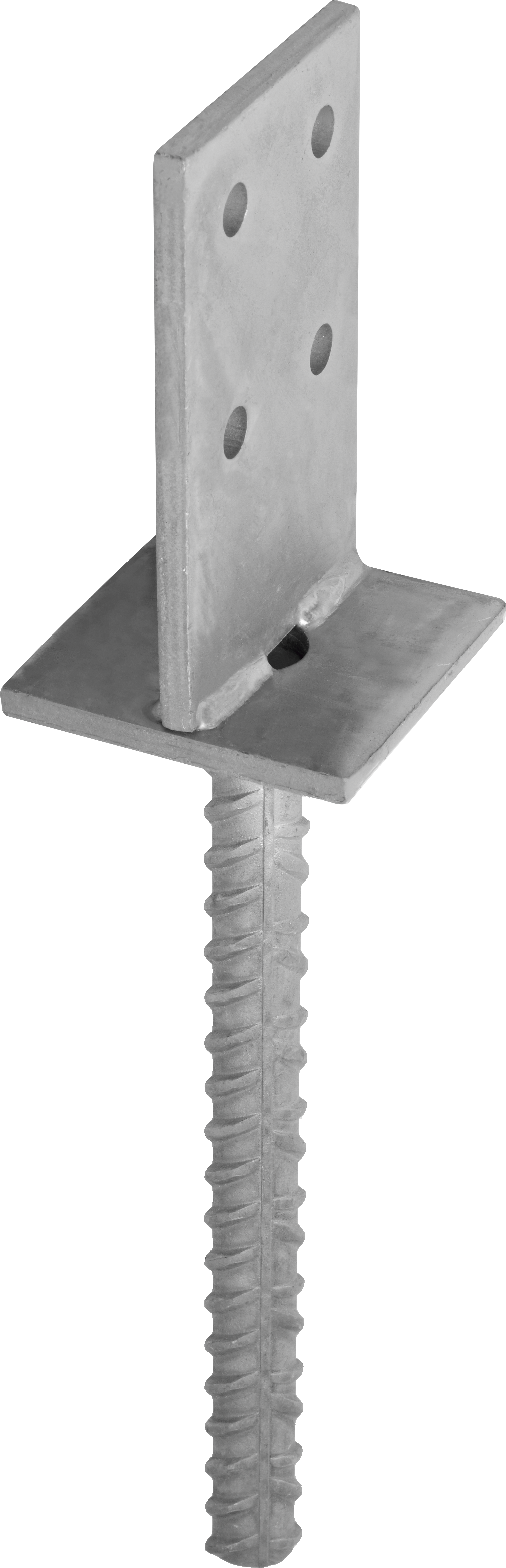

COLUMN BASE TYPE T01 IN CONCRETE



*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)

Art. No. Post [mm] Pressure F1,Rk Tension F1,Rk F2/3,Rk F3/4,Rk
  min w min h Steel [kN]
19810201 100 100 63,5 57,1 3,11 4,77
19810240 100 100 63,5 57,1 2,38 3,63

 4 dowels Ø 10 mm

Column base type T01 in concrete show more

Order no.: 19810201 EAN: 4019346505007

Variant selection(All Orange marked in combination possible):
 Are you a customer or a new customer? (Specialist trade)
 For more information about our products, orders, invoices and promotions, log in to our new shop system (account above).



Ø 11 mm: 4
Trägerplatte Breite: 80
Trägerplatte Stärke: 8
Schwert Breite: 80
Schwert Höhe: 130
Schwert Stärke: 8
Dolle Höhe: 250
Dolle Ø: 20
ETA-16/0550: ETA-16/0550
Material: S 235 JR

equipment

ETA 16 0550 Made in Germany DC Statik

COLUMN BASE TYPE T01 IN CONCRETE



*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)

Art. No. Post [mm] Pressure F1,Rk Tension F1,Rk F2/3,Rk F3/4,Rk
  min w min h Steel [kN]
19810201 100 100 63,5 57,1 3,11 4,77
19810240 100 100 63,5 57,1 2,38 3,63

 4 dowels Ø 10 mm
