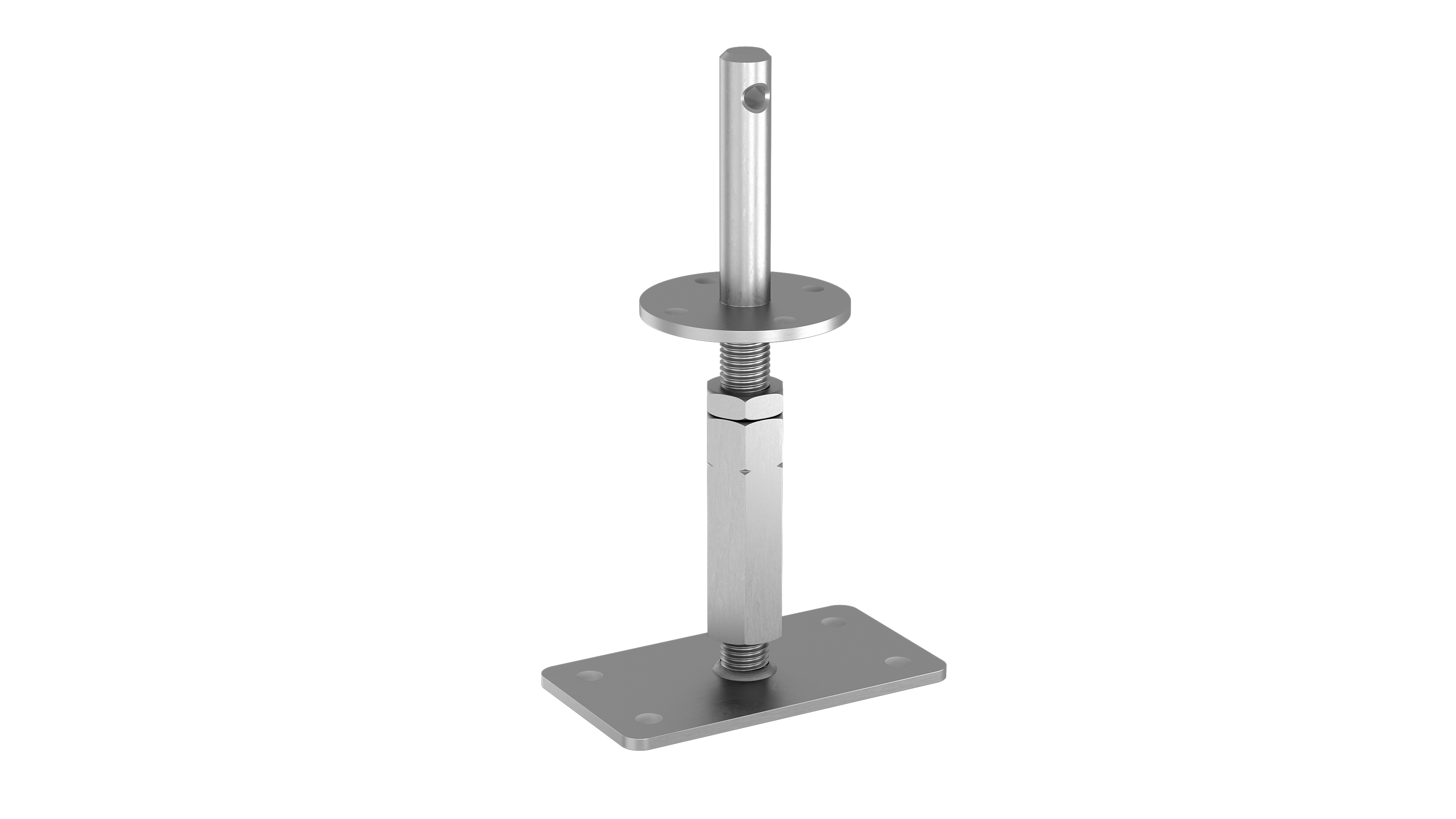

Post Support Typ D height adjustable

GH-Stützenfuß Typ D03 a. B. hv Re/Li 24x120 M24x165-236
ETA 16 0550 Made in Germany DC Statik

COLUMN BASE TYPE D 03 ON CONCRETE, HEIGHT-ADJUSTABLE



*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)

Art. No. Post [mm] Pressure F1,Rk Tension F1,Rk F2/3,Rk F3/4,Rk
  min w min h Steel [kN]
19613201 120 120 59,2 6,66 1,66 1,66

4 screws Ø 10x120 mm



Post Support Typ D height adjustable show more
Order no.: 19613201 EAN: 4019346003534
Variant selection(All Orange marked in combination possible):
 Are you a customer or a new customer? (Specialist trade)
 For more information about our products, orders, invoices and promotions, log in to our new shop system (account above).



Material: S 235 JR
Ø 11mm: 4
Bodenplatte Breite: 100
Bodenplatte Länge: 180
Bodenplatte Stärke: 6
Trägerplatte Stärke: 6
Gewinde Ø: 24
Dorn Höhe: 120
height: 165-236
Carrier plate Ø: 100
Mandrel Ø: 24
D Ø Höhe: 24x165-236
Carrier plate D = Ø: 100x6
Ø 11 mm: 1
Base plate mm L x B x T: 180x100x6
Ø 13 mm: 4
ETA-16/0550: ETA-16/0550

equipment

GH-Rod Dowels 10x100mm
GH-Jig Type D 24x120
GH-DUOFIX 8,0x40mm TX30 SW12 galvanised
ETA 16 0550 Made in Germany DC Statik

COLUMN BASE TYPE D 03 ON CONCRETE, HEIGHT-ADJUSTABLE



*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)

Art. No. Post [mm] Pressure F1,Rk Tension F1,Rk F2/3,Rk F3/4,Rk
  min w min h Steel [kN]
19613201 120 120 59,2 6,66 1,66 1,66

4 screws Ø 10x120 mm
