Pfostenträger Typ T05 extra Stark

Made in Germany

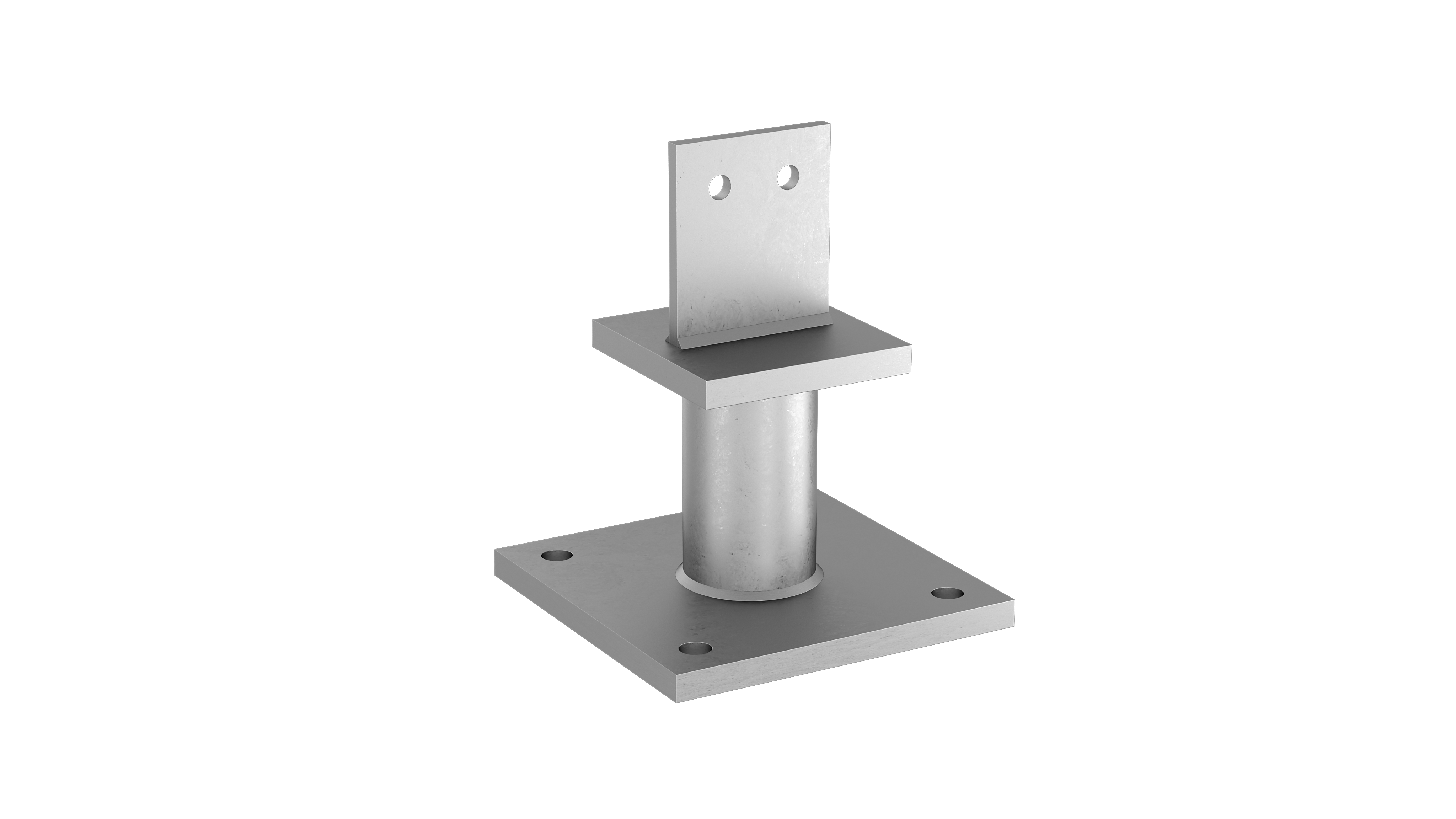

GH-Post Base Type T05 on concrete, 90x105mm, pipe 70x148mm
ETA 16 0550 Made in Germany DC Statik

COLUMN BASE TYPE T05 EXTRA STRONG ON CONCRETE



*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)

Art. No. Post [mm] Pressure F1,Rk Tension F1,Rk F2/3,Rk F3/4,Rk
  min w min h Steel [kN]
19812210 140 140 283,0 36,4 19,8 9,77

 2 dowels Ø 12 mm

Post Support Typ T05 extra Strong show more
Order no.: 19812210 EAN: 4019346505717

Bemaßung

Pfostenträger Typ T02 in Beton_Zeichnung
S = Stärke |  H = Höhe Rohr | Ø = Durchmesser Rohr | H1 = Höhe Schwert |  B = Breite Schwert
 Are you a customer or a new customer? (Specialist trade)
 For more information about our products, orders, invoices and promotions, log in to our new shop system (account above).



Nutzungsklasse: NKL 3
Höhe: 148
Bodenplatte Breite: 200
Bodenplatte Stärke: 15
Ø 13 mm: 2
Trägerplatte Breite: 120
Trägerplatte Stärke: 15
Schwert Breite: 90
Schwert Höhe: 150
Schwert Stärke: 8
Rohr Ø: 70
Ø 17mm: 4
ETA-16/0550: ETA-16/0550
Material: S 235 JR

equipment

GH-Rod Dowels 12x120 mm
GH-DUOFIX 8,0x40mm TX30 SW12 galvanised
ETA 16 0550 Made in Germany DC Statik

COLUMN BASE TYPE T05 EXTRA STRONG ON CONCRETE



*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)

Art. No. Post [mm] Pressure F1,Rk Tension F1,Rk F2/3,Rk F3/4,Rk
  min w min h Steel [kN]
19812210 140 140 283,0 36,4 19,8 9,77

 2 dowels Ø 12 mm
