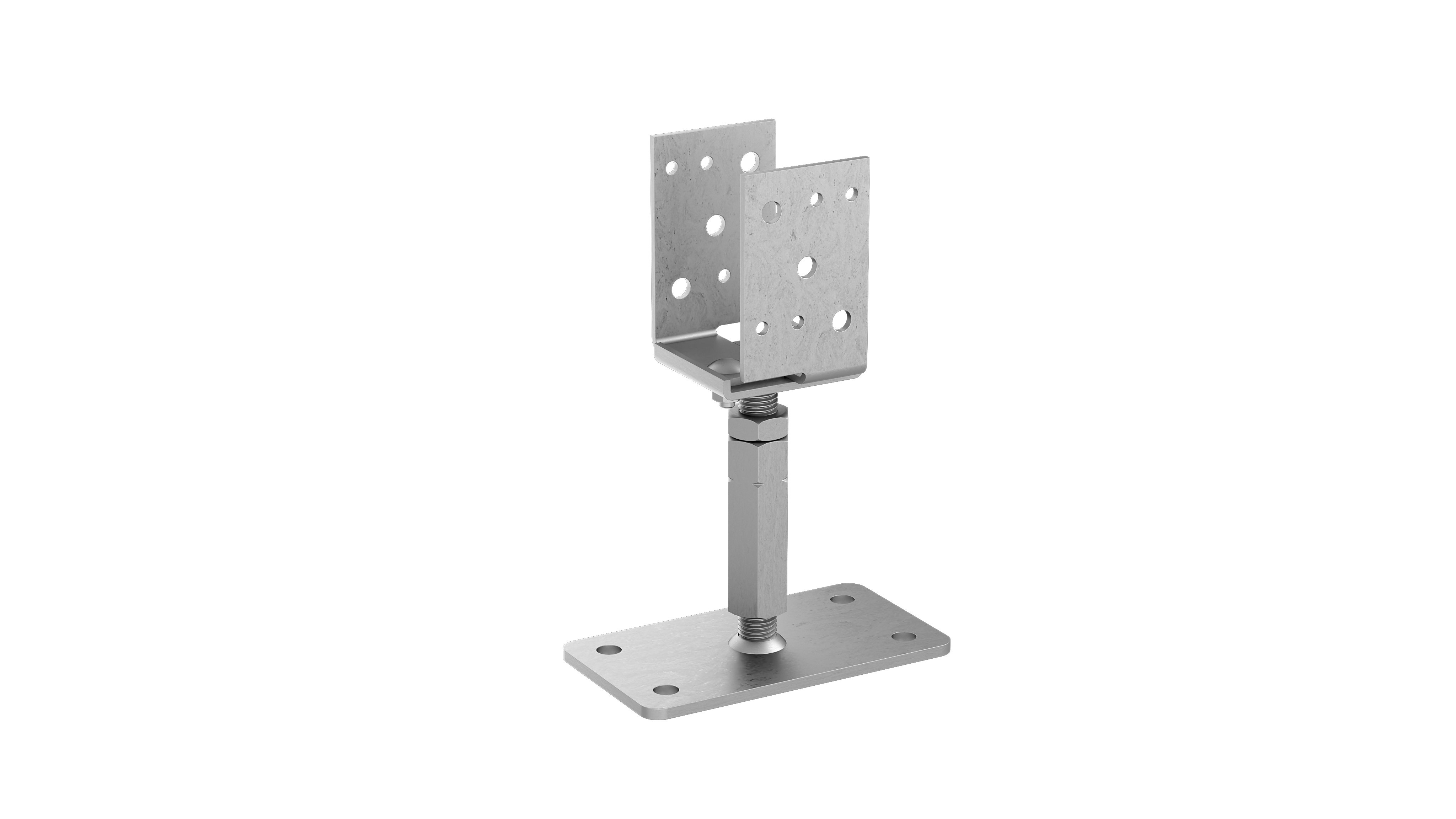

Post Support Typ U 70 on concrete










Order no.: 19653201
EAN: 4019346501054
Anwendungen
Are you a customer or a new customer? (Specialist trade) | ||
For more information about our products, orders, invoices and promotions, log in to our new shop system (account above). |
Breite mm: | 70-150 |
Höhe mm: | 150-200 |
Tiefe mm: | 70 |
Gewinde Ø: | 20 |
Bodenplatte Breite: | 100 |
Bodenplatte Länge: | 180 |
Bodenplatte Stärke: | 6 |
Ø 13 mm: | 4 |
ETA: | ETA-16 0550 |
Material: | S 235 JR |
Nutzungsklasse: | NKL 2 |
Gruppe: | Pfostentraeger |
Made in Germany: | JA |
DC Statik: | JA |
Statikdiagramm: | Pfostentraeger |
Pfostenträger Typ U70 auf Beton Höhen-/Seitenverstellbar
CAD Post Base ZinTOP U70 oc ha la
Design example column base
ETA_16_0550_column base type T01 in concrete
DoP column base
Catalog column base type U-70 on concrete height-/laterally adjustable
Statics column base type U70 on concrete - height- laterally adjustable
![]() |
![]() |
![]() |
COLUMN BASE TYPE U-70 ON CONCRETE HEIGHT-/LATERALLY ADJUSTABLE
*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)
Art. No. | Post [mm] | Pressure F1,Rk | Tension F1,Rk | F2/3,Rk | F3/4,Rk | |
---|---|---|---|---|---|---|
min w | min h | Steel [kN] | ||||
19653201 | 70-150 | 100 | 8,89 | - | - | - |
4 screws Ø 10x60 mm
![]() |
![]() |
![]() |
COLUMN BASE TYPE U-70 ON CONCRETE HEIGHT-/LATERALLY ADJUSTABLE
*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)
Art. No. | Post [mm] | Pressure F1,Rk | Tension F1,Rk | F2/3,Rk | F3/4,Rk | |
---|---|---|---|---|---|---|
min w | min h | Steel [kN] | ||||
19653201 | 70-150 | 100 | 8,89 | - | - | - |
4 screws Ø 10x60 mm
