GH-Stützenfuß ZinTOP Typ D a.B. 40x120 hv.140-210 M24
ETA 16 0550 Made in Germany DC Statik

ZinTOP COLUMN BASES TYPE D ON CONCRETE, HEIGHT-ADJUSTABLE WITH PIN 40 x 120 / especially for tenoning machines

The column bases, which must fulfi l the requirements of service class 3, are subsequently hot-dip galvanised or have our new ZinTOP coating. ZinTOP not only has optimum corrosion resistances but is also visually more attractive.



Advantages of the ZinToP coating

• Uniform surface
• High corrosion resistance
• No contact corrosion in conjunction with stainless steel
• Approved for service class 3 in timber construction
• High surface hardness
• Uniform coat thickness, also on threaded parts



*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)

Art. No. Post [mm] Pressure F1,Rk Tension F1,Rk F2/3,Rk F3/4,Rk
  min w min h Steel [kN]
19823134TOP 120 120 67,9 6,66 2,01 1,55
19823184TOP 120 120 67,9 6,66 1,63 1,25
19823234TOP 120 120 67,9 6,66 1,36 1,05

4 screws Ø 10x120 mm

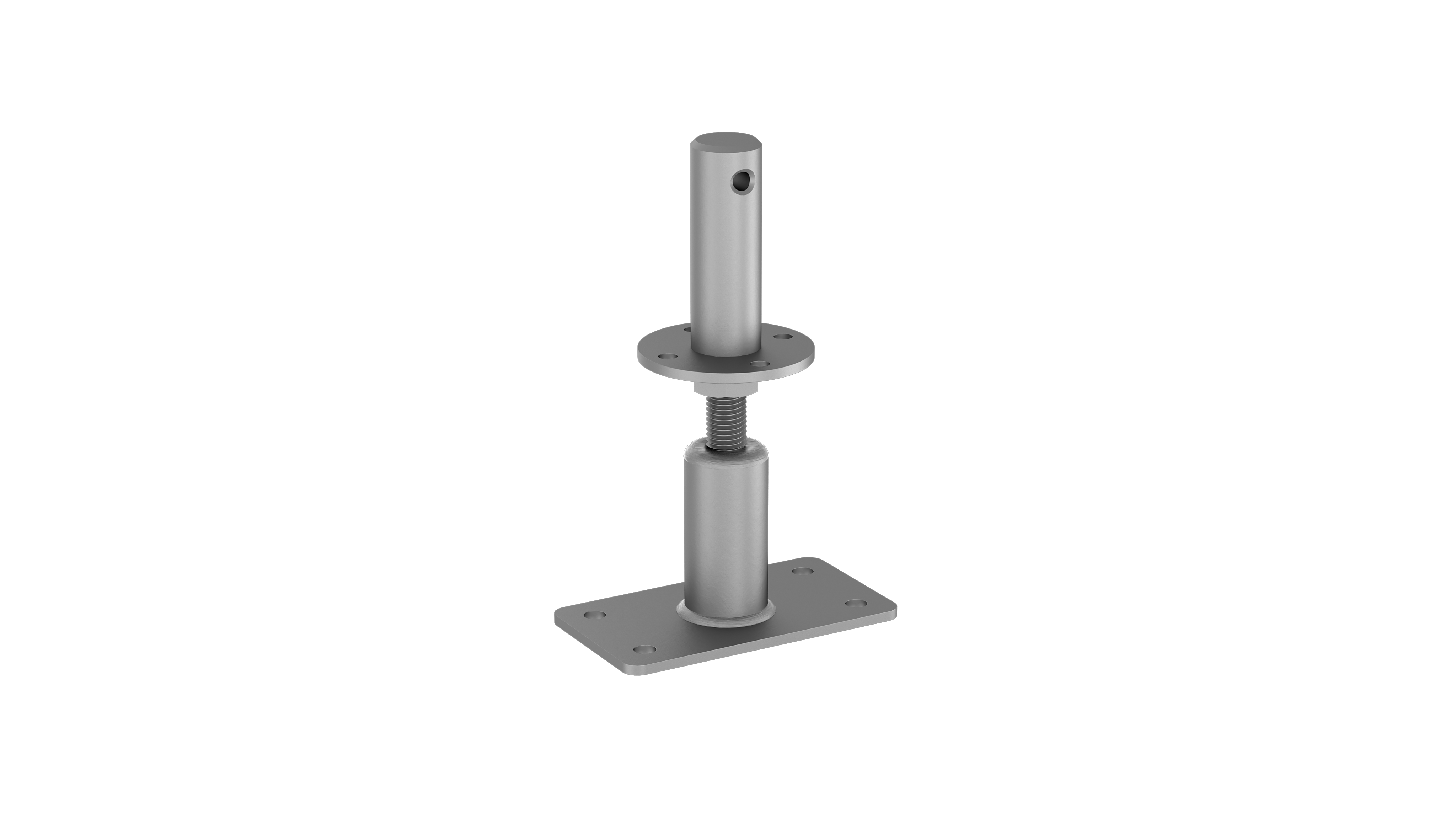

Post Support ZinTOP Typ D40 height adjustable show more
Order no.: 19823134TOP EAN: 4019346010761
ZinTOP


Variant selection(All Orange marked in combination possible):
 Are you a customer or a new customer? (Specialist trade)
 For more information about our products, orders, invoices and promotions, log in to our new shop system (account above).



ZinTOP: ZinTOP
Material: S 235 JR
Bodenplatte Breite: 100
Bodenplatte Länge: 180
Bodenplatte Stärke: 6
Trägerplatte Stärke: 6
Dorn Höhe: 120
Carrier plate Ø: 100
Rohr Ø: 48,3
height: 140-210
Mandrel Ø: 40
D Ø Höhe: 140-210
Carrier plate D = Ø: 100
Ø 11 mm: 1
Base plate mm L x B x T: 180x100x6
Ø 13 mm: 4
ETA-16/0550: ETA-16/0550

equipment

ETA 16 0550 Made in Germany DC Statik

ZinTOP COLUMN BASES TYPE D ON CONCRETE, HEIGHT-ADJUSTABLE WITH PIN 40 x 120 / especially for tenoning machines

The column bases, which must fulfi l the requirements of service class 3, are subsequently hot-dip galvanised or have our new ZinTOP coating. ZinTOP not only has optimum corrosion resistances but is also visually more attractive.



Advantages of the ZinToP coating

• Uniform surface
• High corrosion resistance
• No contact corrosion in conjunction with stainless steel
• Approved for service class 3 in timber construction
• High surface hardness
• Uniform coat thickness, also on threaded parts



*Structural calculation example (The load bearing capacities are only indicative. Detailed static information can be found in the upper section in documents / download)

Art. No. Post [mm] Pressure F1,Rk Tension F1,Rk F2/3,Rk F3/4,Rk
  min w min h Steel [kN]
19823134TOP 120 120 67,9 6,66 2,01 1,55
19823184TOP 120 120 67,9 6,66 1,63 1,25
19823234TOP 120 120 67,9 6,66 1,36 1,05

4 screws Ø 10x120 mm
